ADI EVAL-LTC4286 54 V、36 A熱插拔
ADI LTC4286高功率正熱插拔控制器的全功能評估板。此款54 V、36 A熱插拔設計為熱插拔電源路徑的所有外圍組件提供了明確示例，包括Nexperia具備增強型SOA的 100 V、2.3 mΩ、LFPAK88封裝PSMN2R3-100SSE ASFET。

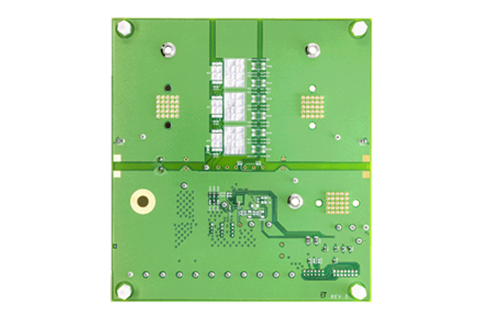

PCB視圖
主要特性與優勢
- 需要采用具備強勁的線性模式性能和增強安全工作區域(SOA)的MOSFET來高效可靠地管理浪涌電流。
- PSMN2R3-100SSE采用高可靠性銅夾片LFPAK88封裝，提供超低RDSon和增強安全工作區性能。
- Nexperia提供一系列支持熱插拔和軟啟動的專用ASFET (http://882686.com/products/mosfets/application-specific-mosfets/asfets-for-hotswap-and-soft-start/#/p=1,s=0,f=,c=,rpp=,fs=0,sc=,so=,es=)
板上的產品 (1)
| Type number | Description | Status | Quick access | |
|---|---|---|---|---|
|
PSMN2R3-100SSE | N-channel 100 V, 2.3 mOhm MOSFET with enhanced SOA in LFPAK88 | Production |
板上的產品 (1)
| Type number | Description | Status | Quick access | |
|---|---|---|---|---|
|
|
PSMN2R3-100SSE | N-channel 100 V, 2.3 mOhm MOSFET with enhanced SOA in LFPAK88 | Production |
文檔 (0)
No documents available
