低VCEsat (BISS)晶體管負載開關

簡化電路設計,降低貼片成本

我們符合AEC-Q101標準的BISS負載開關將一個節能型低VCEsat晶體管和一個RET集成在一個小型SMD封裝中。它們提供目前市場上最高的單位面積電流額定值,非常適合用于切換正電源軌或接地參考負載。

主要特性和優勢

  • 低VCEsat晶體管和RET集成在小型SMD塑料封裝中
  • 節省空間的解決方案,可簡化電路設計,將器件數從四個減少到一個
  • VCEO范圍:15 V至60 V,提供四個電阻值
  • 減少焊點,提升可靠性
  • 電流能力高達:
    • IC:1.8 A(20 V時)
    • IC:1.5 A(60 V時)
  • 降低貼片成本
  • 低集電極-發射極飽和電壓
  • 閾值電壓(<1 V)低于MOSFET
  • 多個封裝選擇
  • 符合AEC-Q101標準

關鍵應用

  • 供電線路開關
  • 電池充電器開關
  • 適合LED、驅動器和背光應用的高端開關
  • 便攜式設備
  • 中等功率DC-DC轉換

參數搜索

Low VCEsat (BISS) transistors load switches
數據加載中,請稍候...
參數搜索不可用。

產品

型號 描述 狀態 快速訪問
PBLS1501Y; PBLS1501V 15 V PNP BISS loadswitch ACT
PBLS1501V 15 V PNP BISS loadswitch EndOfLife
PBLS1502Y; PBLS1502V 15 V PNP BISS loadswitch ACT
PBLS1502V 15 V PNP BISS loadswitch EndOfLife
PBLS1502Y 15 V PNP BISS loadswitch EndOfLife
PBLS1503Y; PBLS1503V 15 V PNP BISS loadswitch ACT
PBLS1503V 15 V PNP BISS loadswitch EndOfLife
PBLS1503Y 15 V PNP BISS loadswitch Production
PBLS1504Y; PBLS1504V 15 V PNP BISS loadswitch ACT
PBLS1504V 15 V PNP BISS loadswitch EndOfLife
PBLS1504Y 15 V 500 mA PNP/NPN loadswitch double transistor Production
PBLS4001Y; PBLS4001V 40 V PNP BISS loadswitch ACT
PBLS4001V 40 V PNP BISS loadswitch EndOfLife
PBLS4001Y 40 V PNP BISS loadswitch Production
PBLS4003Y; PBLS4003V 40 V PNP BISS loadswitch ACT
PBLS4003V 40 V PNP BISS loadswitch EndOfLife
PBLS4003Y 40 V 500 mA PNP/NPN loadswitch double transistor Production
PBLS4004Y; PBLS4004V 40 V PNP BISS loadswitch ACT
PBLS4004V 40 V PNP BISS loadswitch EndOfLife
PBLS4004Y 40 V PNP BISS loadswitch Production
PBLS4005Y; PBLS4005V 40 V PNP BISS loadswitch ACT
PBLS4005V 40 V PNP BISS loadswitch EndOfLife
PBLS4005Y 40 V 500 mA PNP/NPN loadswitch double transistor Production
PBLS1501Y 15 V PNP BISS loadswitch Production
PBLS1504Y-Q 15 V 500 mA PNP/NPN loadswitch double transistor Production
PBLS2001D 20 V PNP BISS loadswitch Production
PBLS2001S 20 V PNP BISS loadswitch EndOfLife
PBLS2002D 20 V PNP BISS loadswitch Production
PBLS2002S 20 V PNP BISS loadswitch EndOfLife
PBLS2003D 20 V PNP BISS loadswitch Production
PBLS2003S 20 V PNP BISS loadswitch EndOfLife
PBLS2004D 20 V PNP BISS loadswitch EndOfLife
PBLS2021D 20 V, 1.8 A PNP BISS loadswitch Production
PBLS2022D 20 V, 1.8 A PNP BISS loadswitch Production
PBLS2023D 20 V, 1.8 A PNP BISS loadswitch Production
PBLS2024D 20 V, 1.8 A PNP BISS loadswitch EndOfLife
PBLS4001D 40 V PNP BISS loadswitch EndOfLife
PBLS4002D 40 V PNP BISS loadswitch EndOfLife
PBLS4002V EndOfLife
PBLS4002Y 40 V, 500 mA PNP loadswitch transistor Production
PBLS4002Y-Q 40 V PNP loadswitch transistor Production
PBLS4003D 40 V PNP BISS loadswitch Production
PBLS4003Y-Q 40 V 500 mA PNP/NPN loadswitch double transistor Production
PBLS4004D 40 V PNP BISS loadswitch EndOfLife
PBLS4005D 40 V PNP BISS loadswitch Production
PBLS4005Y-Q 40 V 500 mA PNP/NPN loadswitch double transistor Production
PBLS6001D 60 V PNP BISS loadswitch Production
PBLS6002D 60 V, 1 A PNP/NPN loadswitch double transistor Production
PBLS6003D 60 V, 1 A PNP loadswitch double transistor Production
PBLS6004D 60 V PNP BISS loadswitch EndOfLife
PBLS6005D 60 V PNP BISS loadswitch Production
PBLS6021D 60 V, 1.5 A PNP BISS loadswitch Production
PBLS6022D 60 V, 1.5 A PNP BISS loadswitch Production
PBLS6023D 60 V, 1.5 A PNP BISS loadswitch Production
PBLS6024D 60 V, 1.5 A PNP loadswitch Production
PBLS6024D-Q 60 V, 1.5 A PNP loadswitch Production
Visit our documentation center for all documentation

Marcom graphics (1)

文件名稱 標題 類型 日期

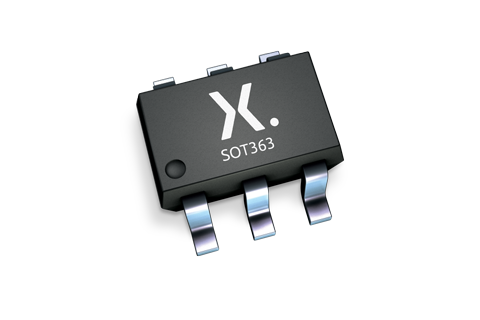

SOT363_mk.png plastic, surface-mounted package; 6 leads; 1.3 mm pitch; 2 mm x 1.25 mm x 0.95 mm body Marcom graphics 2017-01-28
