Low voltage e-mode GaN FETs

Optimum flexibility for high-power

Delivering optimum flexibility in power systems, Nexperia e-mode GaN FETs are ideal for high-power <200 V applications. Offering superior switching performance due very low QC and QOSS values. Enabling faster charging for e-mobility and wired / wireless changing systems as well as significant space and BOM savings in LiDAR and lower noise in Class D audio amplifiers.

參數搜索

Low voltage e-mode GaN FETs
數據加載中,請稍候...
參數搜索不可用。

產品

型號 描述 狀態 快速訪問
GANE3R9-150QBA 150 V, 3.9 mOhm Gallium Nitride (GaN) FET in a 4.0 mm x 6.0 mm Very-Thin-Profile Quad Flat No-Lead Package (VQFN) Production
GANE1R8-100QBA 100 V, 1.8 mOhm Gallium Nitride (GaN) FET in a 4.0 mm x 6.0 mm Very-Thin-Profile Quad Flat No-Lead Package (VQFN) Development
GANE7R0-100CBA 100 V, 7.0 mOhm Gallium Nitride (GaN) FET in a 2.5 mm x 1.5 mm Wafer Level Chip-Scale Package (WLCSP) Development
GANE2R7-100CBA 100 V, 2.7 mOhm Gallium Nitride (GaN) FET in a 4.45 mm x 2.30 mm Wafer Level Chip-Scale Package (WLCSP) Development
GAN7R0-150LBE 150 V, 7 mOhm Gallium Nitride (GaN) FET in a 2.2?mm?x?3.2?mm?x?0.774?mm Land Grid Array (LGA) package Production
GAN3R2-100CBE 100 V, 3.2 mOhm Gallium Nitride (GaN) FET in a 3.5?mm?x?2.13?mm Wafer Level Chip-Scale Package (WLCSP) Production
Visit our documentation center for all documentation

Application note (1)

文件名稱 標題 類型 日期
AN90021.pdf Power GaN technology: the need for efficient power conversion Application note 2020-08-14

Leaflet (2)

文件名稱 標題 類型 日期
nexperia_document_leaflet_GaNFETs_2024-CHN.pdf Power GaN FETs Chinese Leaflet 2024-07-31
nexperia_document_leaflet_GaNFETs_2024.pdf Power GaN FETs Leaflet 2024-07-24

Marcom graphics (1)

文件名稱 標題 類型 日期

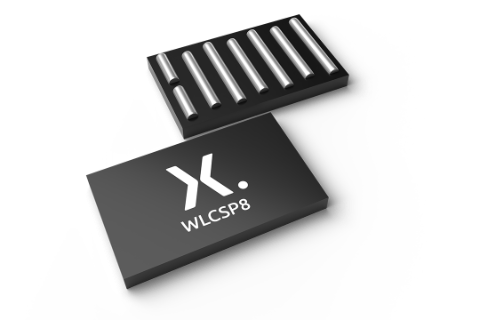

WLCSP8_SOT8072-combi_mk.png wafer level chip-scale package; 8 solder bars; body: 3.5 x 2.13 x 0.429 mm Marcom graphics 2023-04-20

White paper (3)

文件名稱 標題 類型 日期
nexperia_whitepaper_gan_need_for_efficient_conversion_Japanese.pdf Whitepaper: GaN need for efficient conversion (Japanese) White paper 2021-05-20
nexperia_whitepaper_gan_need_for_efficient_conversion_CHN.pdf 白皮書: 功率GaN技術: 高效功率轉換的需求 White paper 2020-08-17
nexperia_whitepaper_gan_need_for_efficient_conversion.pdf White paper: Power GaN technology: the need for efficient power conversion White paper 2020-07-23
