Trench Schottky rectifiers

Delivering high system efficiency and reducing risk of thermal runaway

Nexperia AEC-Q101 rated Trench Schottky rectifiers meet the challenging demands of efficient and space-saving designs. They combine low forward voltage, reverse current and very low Qrr to enable best efficiency at high switching speeds and high ambient temperatures. Available in clip-bond packages with excellent power capabilities.

Key features and benefits

  • Low forward voltage
  • Low Qrr and low IRM
  • Low leakage current
  • High power capability due to clip-bonding technology
  • Small and flat lead SMD power plastic package
  • AEC-Q101 qualified

Key applications

  • High efficiency DC-to-DC conversion
  • Automotive LED lighting
  • Switch mode power supply
  • Freewheeling application
  • Reverse polarity protection
  • OR-ing

參數搜索

Trench Schottky rectifiers
數據加載中，請稍候...
參數搜索不可用。

產品

型號 描述 狀態 快速訪問
PMEG045T030EPD 45 V, 3 A low VF Trench MEGA Schottky barrier rectifier Production
PMEG045T050EPD 45 V, 5 A low VF Trench MEGA Schottky barrier rectifier Production
PMEG045T100EPD 45 V, 10 A low VF Trench MEGA Schottky barrier rectifier NotForDesignIn
PMEG045T100EPE 45 V, 10 A low VF Trench Schottky barrier rectifier Production
PMEG045T100EPE-Q 45 V, 10 A low VF Trench Schottky barrier rectifier Production
PMEG045T150EIPD 45 V, 15 A low VF Trench MEGA Schottky barrier rectifier Production
PMEG045T150EPD 45 V, 15 A low VF Trench MEGA Schottky barrier rectifier Production
PMEG050T150EIPD 50 V, 15 A low VF Trench MEGA Schottky barrier rectifier Production
PMEG050T150EPD 50V, 15 A low VF Trench MEGA Schottky barrier rectifier Production
PMEG060T030ELPE 60 V, 3 A low leakage current Trench Schottky barrier rectifier Production
PMEG060T030ELPE-Q 60 V, 3 A low leakage current Trench Schottky barrier rectifier Production
PMEG060T040CLPE 60 V, 5 A low leakage current Trench Schottky barrier rectifier Production
PMEG060T040CLPE-Q 60 V, 5 A low leakage current Trench Schottky barrier rectifier Production
PMEG060T050ELPE 60 V, 5 A low leakage current Trench Schottky barrier rectifier Production
PMEG060T050ELPE-Q 60 V, 5 A low leakage current Trench Schottky barrier rectifier Production
PMEG060T060CLPE 60 V, 5 A low leakage current Trench Schottky barrier rectifier Production
PMEG060T060CLPE-Q 60 V, 2 x 3 A dual common cathode low leakage current Trench Schottky barrier rectifier Production
PMEG060T080CLPE 60 V, 2 x 4 A dual common cathode low leakage current Trench Schottky barrier rectifier Production
PMEG060T080CLPE-Q 60 V, 2 x 4 A dual common cathode low leakage current Trench Schottky barrier rectifier Production
PMEG060T100CLPE 60 V, 2 x 5 A dual common cathode low leakage current Trench Schottky barrier rectifier Production
PMEG060T100CLPE-Q 60 V, 2 x 5 A dual common cathode low leakage current Trench Schottky barrier rectifier Production
PMEG100T030ELPE 60 V, 3 A low leakage current Trench Schottky barrier rectifier Production
PMEG100T030ELPE-Q 100 V, 3 A low leakage current Trench Schottky barrier rectifier Production
PMEG100T050ELPE 100 V, 5 A low leakage current Trench Schottky barrier rectifier Production
PMEG100T050ELPE-Q 100 V, 5 A low leakage current Trench Schottky barrier rectifier Production
PMEG100T080ELPE 100 V, 8 A low leakage current Trench MEGA Schottky barrier rectifier Production
PMEG100T080ELPE-Q 100 V, 8 A low leakage current Trench Schottky barrier rectifier Production
PMEG100T100ELPE 100 V, 10 A low leakage current Trench Schottky barrier rectifier Production
PMEG100T100ELPE-Q 100 V, 10 A low leakage current Trench Schottky barrier rectifier Production
PMEG100T10ELR 100 V, 1 A low leakage current Trench Schottky barrier rectifier Production
PMEG100T10ELR-Q 100 V, 1 A low leakage current Trench Schottky barrier rectifier Production
PMEG100T10ELXD 100 V, 1 A Trench Schottky barrier rectifier Production
PMEG100T10ELXD-Q 100 V, 1 A Trench Schottky barrier rectifier Production
PMEG100T120ELPE 100 V, 12 A low leakage current Trench Schottky barrier rectifier Production
PMEG100T150ELPE 60 V, 3 A low leakage current Trench Schottky barrier rectifier Production
PMEG100T200ELPE 100 V, 20 A low leakage current Trench Schottky barrier rectifier Production
PMEG100T20ELP 100 V, 2 A low leakage current Trench Schottky barrier rectifier Production
PMEG100T20ELP-Q 100 V, 2 A low leakage current Trench Schottky barrier rectifier Production
PMEG100T20ELR 100 V, 2 A low leakage current Trench Schottky barrier rectifier Production
PMEG100T20ELR-Q 100 V, 2 A low leakage current Trench Schottky barrier rectifier Production
PMEG100T20ELXD 100 V, 2 A Trench Schottky barrier rectifier Production
PMEG100T20ELXD-Q 100 V, 2 A Trench Schottky barrier rectifier Production
PMEG100T30ELP 100 V, 3 A low leakage current Trench Schottky barrier rectifier Production
PMEG100T30ELP-Q 100 V, 3 A low leakage current Trench Schottky barrier rectifier Production
PMEG100T30ELR 100 V, 3 A low leakage current Trench Schottky barrier rectifier Production
PMEG100T30ELR-Q 100 V, 3 A low leakage current Trench Schottky barrier rectifier Production
PMEG100T50ELP 100 V, 5 A low leakage current Trench Schottky barrier rectifier Production
PMEG100T50ELP-Q 100 V, 5 A low leakage current Trench Schottky barrier rectifier Production
PMEG100V080ELPE 100 V, 8 A low leakage current Schottky barrier rectifier Production
PMEG100V080ELPE-Q 100 V, 8 A low leakage current Schottky barrier rectifier Production
PMEG40T10ER 40 V, 1 A low VF Trench MEGA Schottky barrier rectifier Production
PMEG40T10ER-Q 40 V, 1 A low VF Trench MEGA Schottky barrier rectifier Production
PMEG40T20EP 40 V, 2 A low VF Trench MEGA Schottky barrier rectifier Production
PMEG40T20EP-Q 40 V, 2 A low VF Trench MEGA Schottky barrier rectifier Production
PMEG40T20ER 40 V, 2 A low VF Trench MEGA Schottky barrier rectifier Production
PMEG40T20ER-Q 40 V, 2 A low VF Trench MEGA Schottky barrier rectifier Production
PMEG40T30EP 40 V, 3 A low VF Trench MEGA Schottky barrier rectifier Production
PMEG40T30EP-Q 40 V, 3 A low VF Trench MEGA Schottky barrier rectifier Production
PMEG40T30ER 40 V, 3 A low Trench MEGA Schottky barrier rectifier Production
PMEG40T30ER-Q 40 V, 3 A low Trench MEGA Schottky barrier rectifier Production
PMEG40T50EP 40 V, 5 A low VF Trench MEGA Schottky barrier rectifier Production
PMEG40T50EP-Q 40 V, 5 A low VF Trench MEGA Schottky barrier rectifier Production
PMEG45T10EXD 45 V, 1 A Trench MEGA Schottky barrier rectifier Production
PMEG45T10EXD-Q 45 V, 1 A Trench MEGA Schottky barrier rectifier Production
PMEG45T15EPD 45 V, 15 A low VF Trench MEGA Schottky barrier rectifier Production
PMEG45T20EXD 45 V, 2 A Trench MEGA Schottky barrier rectifier Production
PMEG45T20EXD-Q 45 V, 2 A Trench MEGA Schottky barrier rectifier Production
PMEG60T10ELP 60 V, 1 A low leakage current Trench MEGA Schottky barrier rectifier Production
PMEG60T10ELP-Q 60 V, 1 A low leakage current Trench MEGA Schottky barrier rectifier Production
PMEG60T10ELR 60 V, 1 A low leakage current Trench MEGA Schottky barrier rectifier Production
PMEG60T10ELR-Q 60 V, 1 A low leakage current Trench MEGA Schottky barrier rectifier Production
PMEG60T10ELXD 60 V, 1 A Trench Schottky barrier rectifier Production
PMEG60T10ELXD-Q 60 V, 1 A Trench Schottky barrier rectifier Production
PMEG60T20ELP 60 V, 2 A low leakage current Trench MEGA Schottky barrier rectifier Production
PMEG60T20ELP-Q 60 V, 2 A low leakage current Trench MEGA Schottky barrier rectifier Production
PMEG60T20ELR 60 V, 2 A low leakage current Trench MEGA Schottky barrier rectifier Production
PMEG60T20ELR-Q 60 V, 2 A low leakage current Trench MEGA Schottky barrier rectifier Production
PMEG60T20ELXD 60 V, 2 A Trench Schottky barrier rectifier Production
PMEG60T20ELXD-Q 60 V, 2 A Trench Schottky barrier rectifier Production
PMEG60T30ELP 60 V, 3 A low leakage current Trench Schottky barrier rectifier Production
PMEG60T30ELP-Q 60 V, 3 A low leakage current Trench MEGA Schottky barrier rectifier Production
PMEG60T30ELR 60 V, 3 A low leakage current Trench MEGA Schottky barrier rectifier Production
PMEG60T30ELR-Q 60 V, 3 A low leakage current Trench MEGA Schottky barrier rectifier Production
PMEG60T50ELP 60 V, 5 A low leakage current Trench Schottky barrier rectifier Production
PMEG60T50ELP-Q 60 V, 5 A low leakage current Trench MEGA Schottky barrier rectifier Production
Visit our documentation center for all documentation

Application note (1)
文件名稱 標題 類型 日期
AN90056.pdf Trench Schottky diodes in modern switching applications Application note 2024-09-09

Brochure (1)
文件名稱 標題 類型 日期

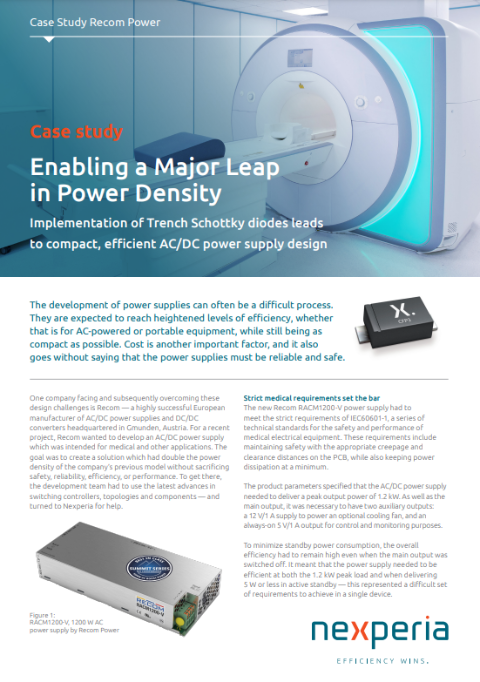

Nexperia_document_brochure_Case_Study_RECOM_Nexperia.pdf Case study: Enabling a Major Leap in Power Density Brochure 2021-09-21

Leaflet (1)
文件名稱 標題 類型 日期

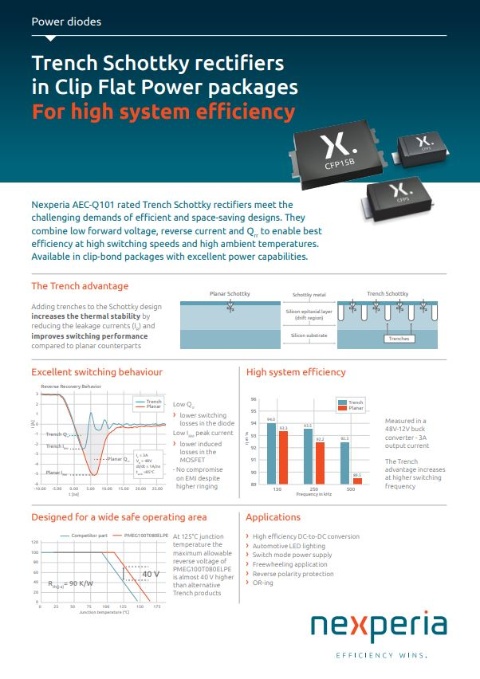

Nexperia_document_leaflet_Trench_Schottky_rectifiers_2021.pdf Trench Schottky rectifiers in Clip Flat Power packages for high system efficiency Leaflet 2021-04-28

Marcom graphics (1)
文件名稱 標題 類型 日期

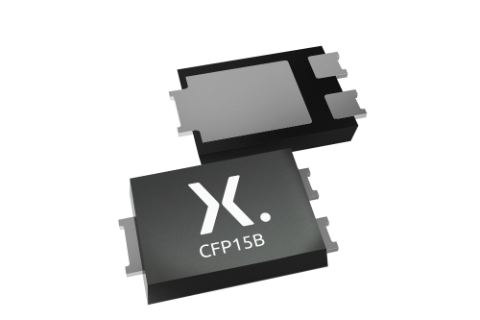

RS2619_CFP15B_Combi.jpg CFP15B package 3D image Marcom graphics 2021-04-30

Selection guide (2)
文件名稱 標題 類型 日期
Nexperia_Selection_guide_2024.pdf Nexperia Selection Guide 2024 Selection guide 2024-10-02
Nexperia_Selection_guide_2023.pdf Nexperia Selection Guide 2023 Selection guide 2023-05-10

White paper (2)
文件名稱 標題 類型 日期
Nexperia_document_whitepaper_Schottky_rectifier_comparison_2021_HR.pdf Trench Schottky Rectifier functioning, benefits and use cases White paper 2021-08-06
nexperia_whitepaper_trench_schottky_rectifiers_Japanese.pdf Nexperia Whitepaper Trench Schottky Rectifiers Japanese White paper 2021-07-13
