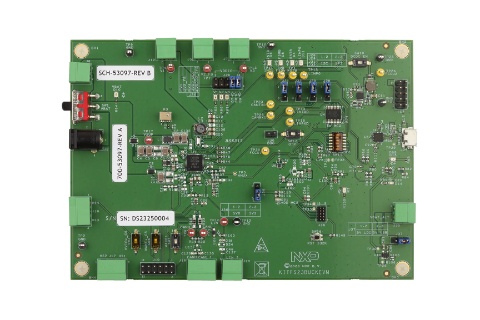

恩智浦FS23功能安全
在汽車電動泵、暖通空調(HVAC)以及傳動和變速器系統中，恩智浦參考設計利用其FS23系列汽車安全SBC以符合ASIL B的標準為通用車身控制應用提供支持。設計中包含來自Nexperia的一系列ESD保護、邏輯和二極管器件。
主要特性與優勢
- 樹形電源軌，具備高度靈活性，提供基于S32K處理器的應用
- 可配置的電壓和上電/斷電序列
- 支持失效保護功能，包括高級看門狗
關鍵應用
板上的產品 (9)
| Type number | Description | Status | Quick access | |
|---|---|---|---|---|
|
74HC245PW | Octal bus transceiver; 3-state | Production | |
|
BCP53-16 | 80 V, 1 A PNP medium power transistors | Production | |
|
BZX84-A5V1 | Voltage regulator diodes | Production | |
|
PESD1IVN24-LS | ESD protection for In-vehicle networks | Production | |
|
PESD1IVN27-A | ESD protection for In-vehicle networks | Production | |
|
PESD5V0R1BSF | Ultra low capacitance bidirectional ESD protection diode | Production | |
|
PMEG2005AEL | 20 V, 0.5 A ultra low VF Schottky barrier rectifier | Production | |
|
|
PMEG4005AEA-Q | Very low VF MEGA Schottky barrier rectifier | Production | |
|
PMEG4020ETR | High temperature 40 V, 2 A low VF Schottky barrier rectifier | Production |
相關板塊 (2)
| Board | Description | Type | Quick links | Shop link | |
|---|---|---|---|---|---|
|
NXP-FS86-Functional-safety | NXP FS86 Functional safety | Reference design |
|
|
|

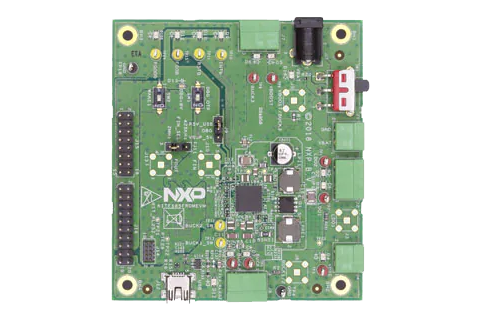

NXP-FS85-Functional-safety | NXP FS85 Functional safety | Reference design |
|
