NEVB-NPS3102B 12 V, 2-13.5 A, 17 m? auto-retry eFuse evaluation board

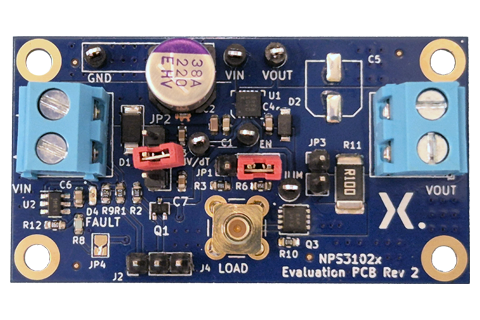

This NEVB-NPS3102B evaluation board is designed to evaluate the performance and behavior of the NPS3102B electronic fuse. It includes a NMOS transistor for short circuit monitoring, a comparator circuitry with LED fault indication, selectable output voltage ramp times, and adjustable current limit settings.
Key features & benefits
- Input operating voltage range (VIN): 9 V to 18 V
- Continuous DC load current: 11 A (Tamb = 25 °C)
- Selectable current limit
- Selectable output slew rate
- Fault detection indicator
- Short circuit FET
- IN and OUT transient protection diodes
- Open drain enable drive
